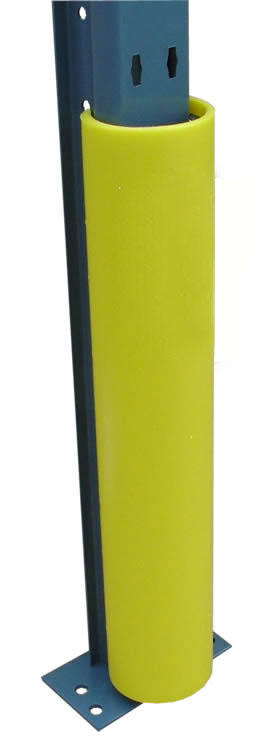

PLASTIC PROTECTOR INTRODUCTION


Model No

Height

Thickness

Width

Opening Width

Material

Using Range

Description

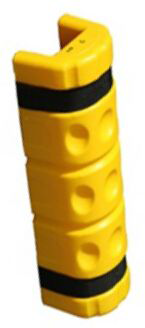

  The first generation

JY-P1-1

300mm

2.9mm

126mm

48mm

pvc

76-120MM POST

1.The first generation of plastic upright protector
with catchy color has good warning function to the
forklift worker
2.It is suitable for protecting all the upright section
size between 76-120mm
3. Simple and fast installation,save the space effectively.

J-P1-2

400mm

2.9mm

126mm

48mm

pvc

JY-P1-3

500mm

2.9mm

126mm

48mm

pvc

JY-P1-4

600mm

2.9mm

126mm

48mm

pvc

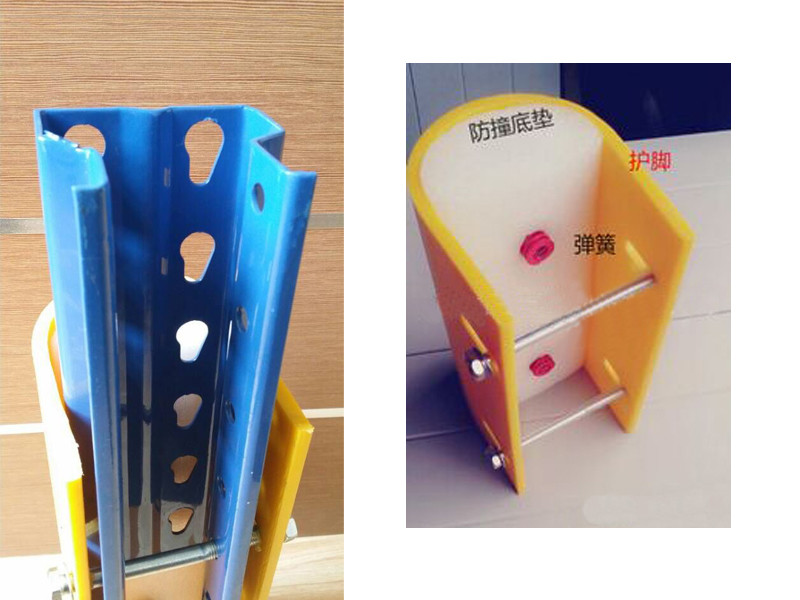

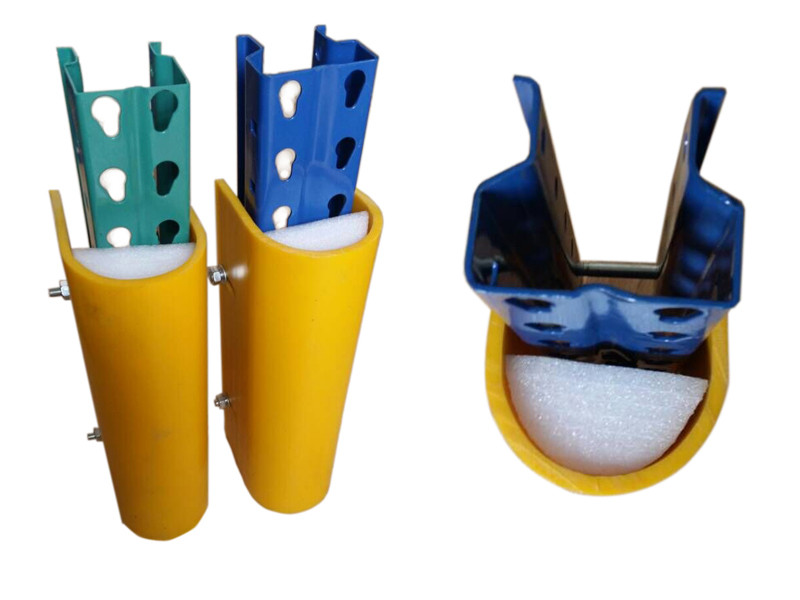

 The second generation

JY-P2-1

300mm

8mm

100mm

PE

80-100MM POST

1.The Second generation of plastic upright protector
with catchy color has good warning function to the
forklift worker
2.It takes the PE material for outer layer and PE for
inside Layer combination,
3.Two bolts up and down connection , its actual anti-impact
performance is effectively improved , and welcomed by many
clients once recommended.
4.It is suitable for protecting all the upright section size
between 80-100mm.

JY-P2-2

400mm

8mm

100mm

PE

JY-P2-3

500mm

8mm

100mm

PE

JY-P2-4

600mm

8mm

100mm

PE

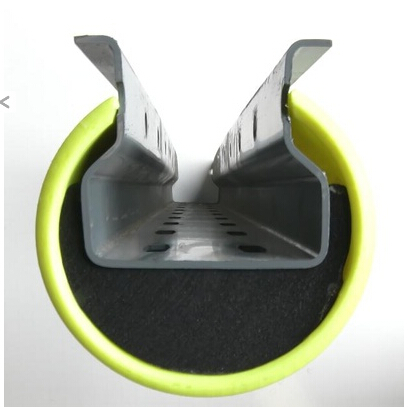

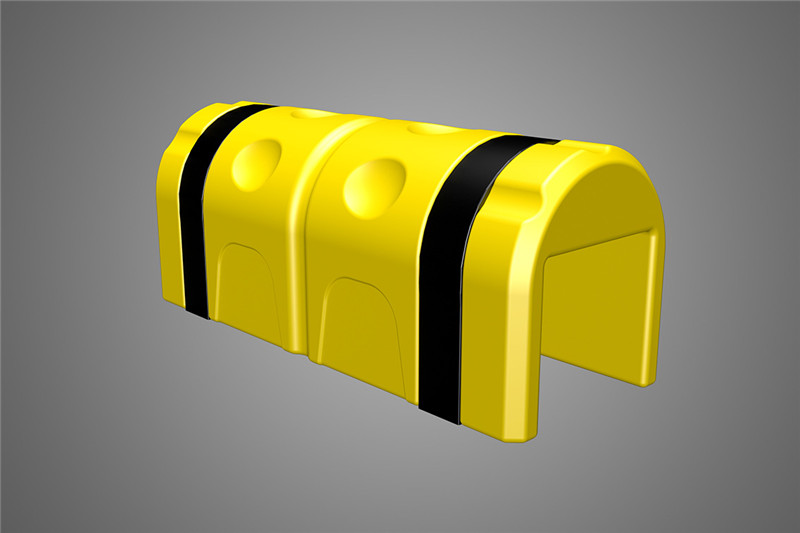

The third generation

JY-P3-1

133mm

3.7mm

157mm

51mm

PE

76-120MM POST

1.The third generation of plastic upright protector with
catchy color has good warning function to the forklift worker
2.It is suitable for protecting all the upright section size
between 76-120mm
3.Installation and removal freely , and its total height can
be combined freely.
4.It takes the material of PE and PP， which makes the plastic
upright protector stronger to protect the upright. It is our
new product in 2016.

The fourth generation

JY-P4-1

550mm

92mm

PE

80-90MM POST

1.The fourth generation of plastic upright protector with
catchy color has good warning function to the forklift
worker
2.It is bound on the Upright, and suitable for protecting
the upright section size below80-90mm
3.The material of PE is taken for the latest generation of
plastic upright protector
4.Installation and removal easily

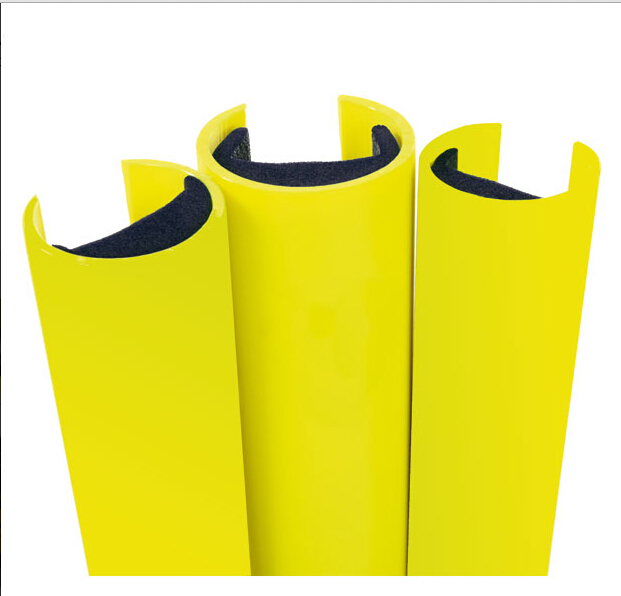

The fifth generation

JY-P5-1

450mm

80mm

PE

76-140MM POST

1,The fifth generation of plastic upright protector with
catchy color has good warning function to the forklift worker
Easy installation & removal.
2, Safety yellow color provides excellent visual reference
for drivers and other warehouse personnel.
3,Prevent damage caused by impact loads
4,Be free of maintenance.
5, Economically and practically improve the security
6,It is suitable for protecting all the upright section size between 76-140mm.

JY-P5-2

450mm

90mm

PE

JY-P5-3

450mm

102mm

PE

JY-P5-4

450mm

120mm

PE

JY-P5-5

450mm

140mm

PE

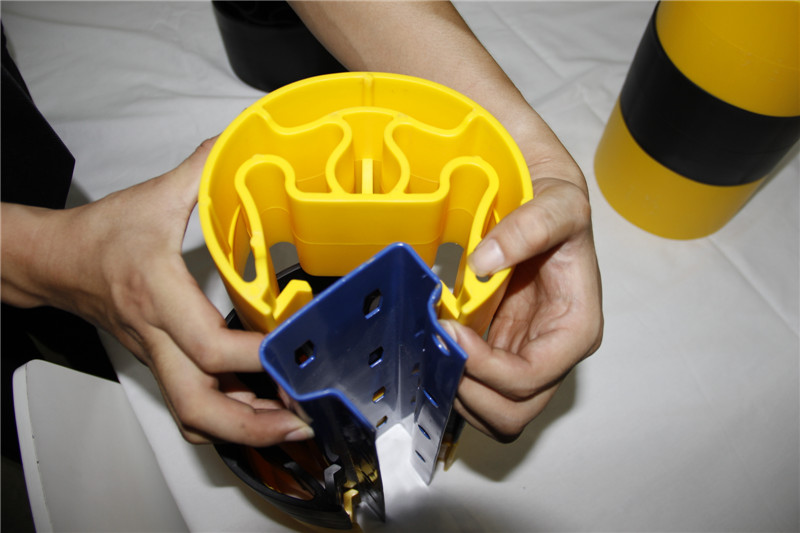

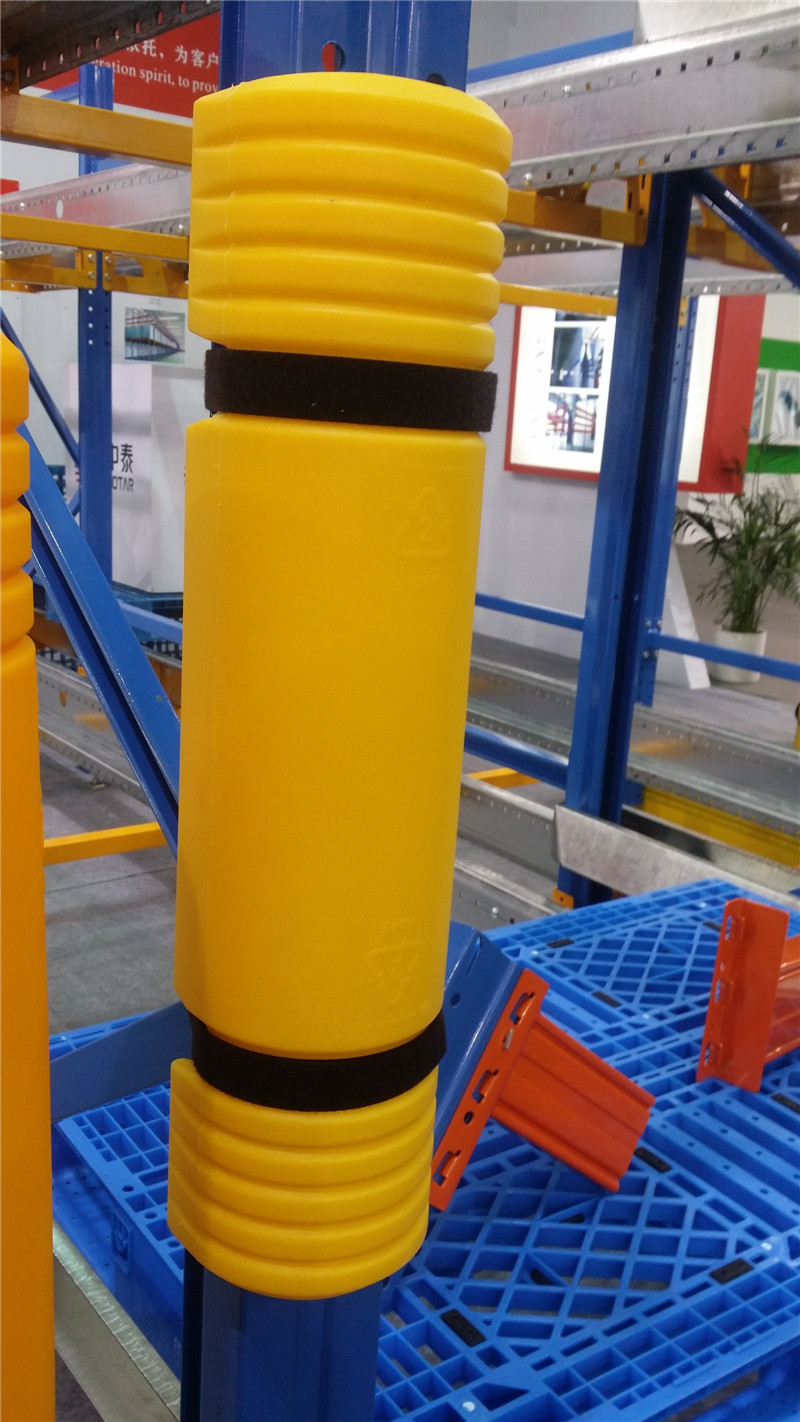

The sixth generation

JY-P6

600mm

6.3

126

60-120

HDPE

Rapid and easy installation, fits in seconds – No Fixings
Required Reliable, tough and resilient HDPE  (High Density
Polyethylene)‘Persistence of Shape’ ensures long and
effective lifetime serviceVirtually unbreakable in temperature
above 5 degrees + operates down to -40 degrees
Fits all makes of pallet racking and is inter-transferable
Impervious to moisture, mould growth, corrosion, acid,
alkaline and most solvents
High visibility colour as standard with other colours
available to enhance your warehouse safety and branding e.g. Red (Fire Exits)
Affordable, flexible options to suit your budget – Invest
to Save  Reduces racking damage by as much as 80% saving you
Time, Trouble and Money
Fully recyclable and non-toxic
