Double layer wall panel forming machine
    Publish time 2015-02-10 15:40

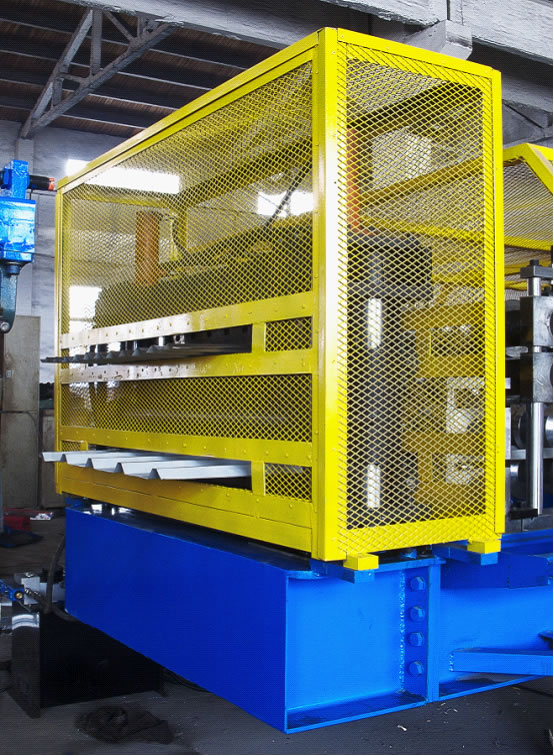

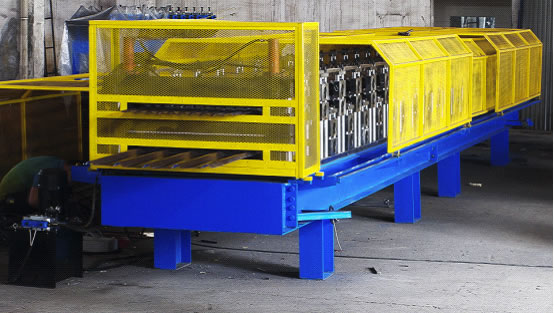

Double layer wall panel forming machine

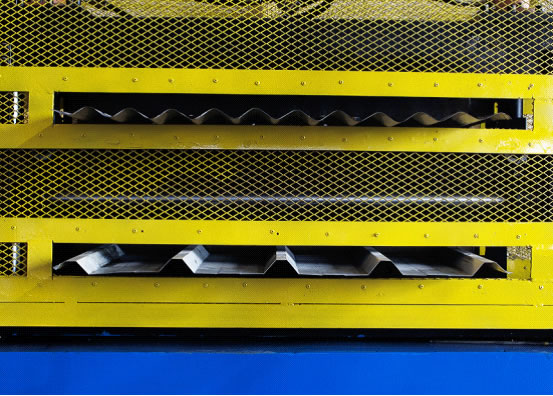

Double layer wall panel forming machine—2 different panels from customer’s request

Technical parameters:
1.Maching material : thickness 0.4-0.7 mm
2.Main power : 7.5KW
3.Forming steps : 16-22 according to drawings
4.Forming speed :2-6 m/min
5.Cutting : Hydraulic cutting    3kw
6.Control: PLC control cut to length ,  length error +/-1mm

Working processing ：

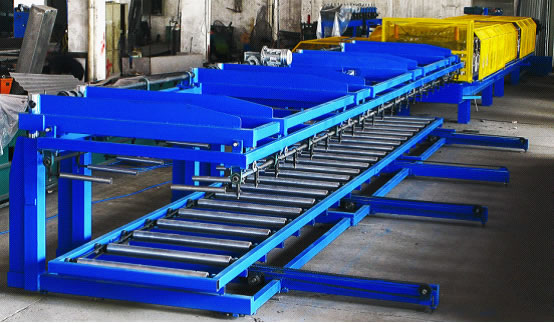

decoiler→ coil strip feeding→ roll forming→cut to length→collecting platform→ Finish
